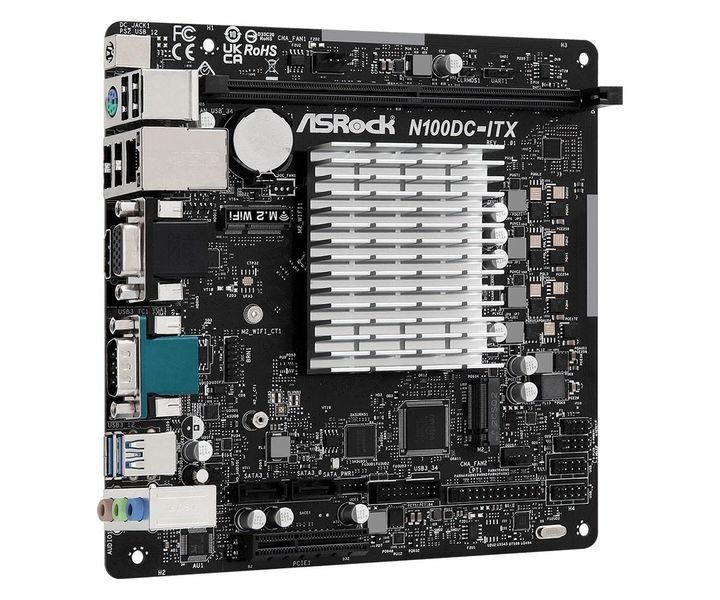

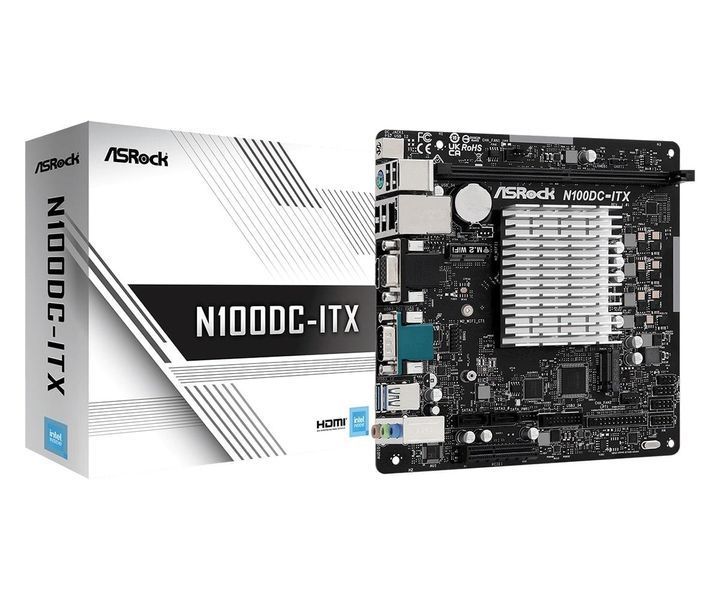

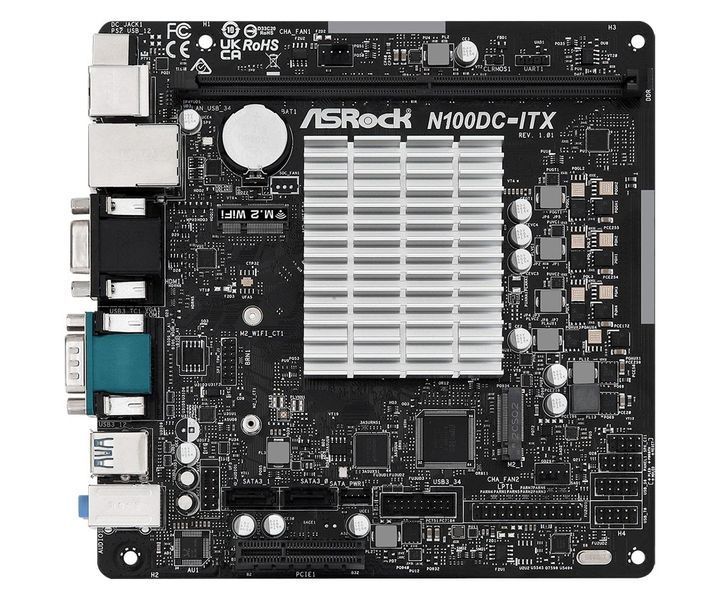

Материнская плата ASRock N100DC-ITX Intel Quad core N100 (3.4GHz) 1xDDR4 M.2 HDMI mITX

ЦПУ

- Intel® Quad-Core Processor N100 (Up to 3.4 GHz)
- Supports Intel® Turbo Boost Technology

Пам'ять

- 1 x DDR4 DIMM Slot
- Supports DDR4 non-ECC, un-buffered memory up to 3200
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 32GB

BIOS

- 128Mb AMI UEFI Legal BIOS with GUI support

Графіка

- Integrated Intel® UHD Graphics: 24 EUs inside (Up to 750MHz)
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.2 and max. resolution up to 4K 60Hz
- 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz

Аудіо

*The inbox driver for Windows® 10 only supports 2-channel audio output. Please refer to the FAQ to check how to turn on the 5.1-channel audio output and any limitations.

LAN

- Gigabit LAN 10/100/1000 Mb/s
- Realtek 8111H

Слоти

*Supports NVMe SSD as boot disks

Накопичувачі

*Supports NVMe SSD as boot disks

USB

*All USB ports support ESD Protection

Коннектори

- 1 x Print Port Header
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 2 x Chassis Fan Connectors (4-pin)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

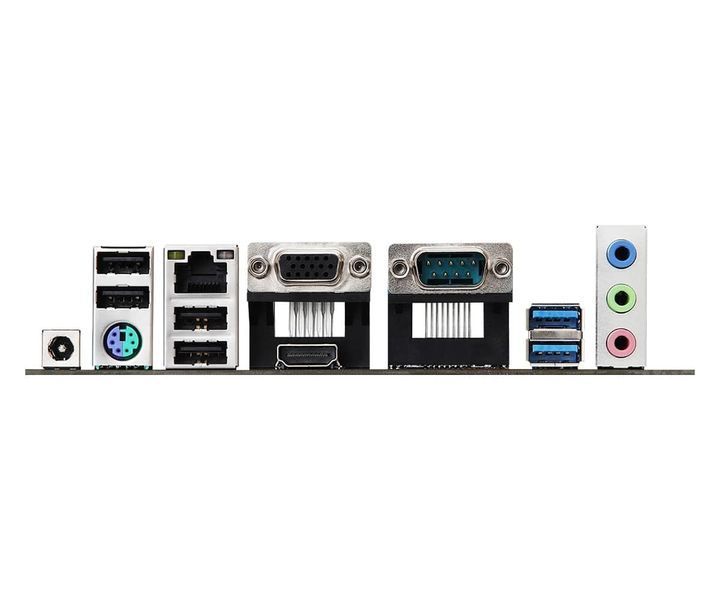

Порти

- 1 x DC Jack (Compatible with the 19V power adapter, 5.5 x 2.5mm DC-in jack)
- 2 x Antenna Mounting Points
- 1 x PS/2 Mouse/Keyboard Port
- 1 x Serial Port: COM1
- 1 x D-Sub Port
- 1 x HDMI Port
- 2 x USB 3.2 Gen1 Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone
